超灰墊片膠82194、 85084、 82195
Permatex Ultra Grey Gasket Maker
泰揚超灰墊片膠
Phone: 18930426792? Mobile: 021-67769720

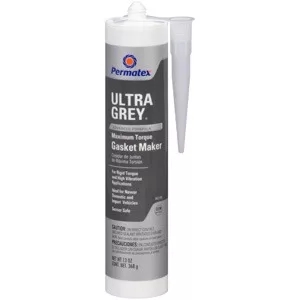

Permatex Ultra Grey Gasket Maker
泰揚超灰墊片膠
適用于高扭矩條件下工作的室溫硫化墊片膠。完全固化后，其填補縫隙大可達6mm，超出客戶的操作需要，氣味淡，無腐蝕性，并且充分發揮其防止油及冷卻液滲漏的特點和抗振的優越性能。間歇適用溫度范圍在-54℃至260℃之間。
包裝規格
型號 | 包裝規格 | 每箱數量 | 產品代號 |
82194 | 3.5盎司卡式管裝 | 12 | 82194 |
85084 | 9.5盎司PowerBead罐裝 | 6 | 85084 |
82195 | 13盎司卡桶 | 12 | 82195 |
PRODUCT DESCRIPTION Permatex Ultra Gray Gasket Maker is a single component, room temperature vulcanizing gasketing compound desi gned to provide reliable"formed-in-place" gaskets for me chanical assemblies. This material cures on exposure to moisture in the air to form a tough, flexible, silicone rubber gasket. The product resists aging, weathering and thermal cycling without hardening, shrinking or cracking, Desigend to perform under the higher load conditions of engines with closely spaced bolt patterns, and maintains outstanding oil, water-glycol resistance. PRODUCT BENEFITS ● High load resistance ● Improved oil resistance ● Non-corrosive ● Replaces most cut gaskets ● Can be used as a gasket maker or dressing ● Non-flammable, Non-toxic ● Low odor TYPICAL APPLICATIONS ● Pump housings ● Machine tools ● Compressors ● Gearboxes ● Valve covers ● Oil pans ● Transmission pans DIRECTIONS FOR USE For assembly as a form-in-place gasket 1.Remove all previous material from mating surfaces. Permatex Gasket Remover or Silicone Stripper is recomm ended for most materials. 2.For best results, clean and dry all surfaces with a residue- free solvent, such as Permatex Brake and Patrs Cleaner. 3.Cut nozzle to desired bead size, 1/6 to 1/4 in diameter. An 1/8 bead is usually sufficient for most applications. 4.Remove cap, puncture tube or cartridge seal and attach extension nozzle. 5.Apply a continuous and even bead of silicone to one sur face, firs tracing the internal areas of the gasket configu ration, then all surrounding bolt holes as shown below. 6.Assemble parts immediately while silicone is still wet. Secure or tighten to recommended torque specs. 7.Re-torque will not be necessary after the product has cured. | For assembly as a gasket dressing 1.Repeat steps 1 through 4 as in previous section 2.Apply a thin film of silicone to one surface to be sealed. 3.Place the pre-cut gasket onto silicone film. 4.Apply a second thin film to pre-cut gasket surface. 5.Remove any excess and assemble parts immediately. Note:Product is not recommended for use as a cylinder head gasket or head gasket sealant. Instructions for PowerBead 1.Clean and dry all flange surfaces to be sealed. 2.Remove black cap from top of extension nozzle. 3.Turn nozzle extension one complete turn(360) counterclockwise. 4.Depress finger trigger and apply a continuous 1/16 inch to 1/8 inch PowerBead to one surface. 5.Assemble parts immediately while silicone is still wet. 6.Finger tighten flange only until material begins to seep out the sides of the flange. 7.Allow to set for at least two hours and re-torque at least one quarter to one half turn. 8.For best results, allow to cure overmight. 9.To close, turn extension nozzle clockwise until tight( about one full turn). Wipe off excess material from nozzle and replace black cap. Storage of Unused Product 1.Create a "Silicone Plug" by allowing excess material to extend beyond the extension nozzle or aerosol tip to cure, sealing and protecting the remaining product from moisture, For reuse, simply remove the cured product from the tip. 2.For PowerBead dispensers, you may store remaining product using either the above "silicone plug" method or using the included plastic cap. For Cleanup 1.Remove uncured product from parts and hand-tools with Permatex Envirosafe ODC Free Cleaner/Degreaser. If skinned over, break film with a dry cloth to remove as much as possible Remove the remaining material with Permatex Gasket Remover. 2.Clean hands with a dry cloth or Permatex Fast Orange Hand Cleaner. PROPERTIES OF UNCURED MATERIAL Typical Value Chemical Type Oxime silicone rubber Appearance Grey non-sag paste Odor Low odor Specific Gravity 1.5 Extrusion rate@25℃，（grams/min） >250 Flash Point ℃(℉) >93(>200) |
TYPICAL CURING PERFORMANCE Permatex Ultra Gray Gasket Maker cures on exposure to moisture in the air, The product dries tack free in one hour and fully cures in 24 hours. Cure times will vary with temperature, humidity and gap. PERFORMANCE OF CURED MATERIAL After 7 days at 25℃(77℉），50%Relative Humidity Typical Values Hardness(Shore A) >45 Elongation,% >120 Tensile Strength,N/mm2(psi) >2.6 (>377) Material will stretch 1.2 times its original length before breaking Amount of force required to break material TYPICAL ENVIRONMENTAL RESISTANCE Temperature Resistance Typical Values Continuous,℃(℉) -54 to 316 (-65 to 600) Intermittent,℃(℉) -54 to 343 (-65 to 650) Chemical/Solvent Resistance The product retains effective properties in contact with shop fluids, automotive fluids, such as motor oil, transmission fluids, alcohol and antifreeze solutions. Note:Not recom mended for parts in contact with gasoline. | GENERAL INFORMATION This product is not recommended for use in pure oxygen and/or oxygen rich systems and should not be selected as a sealant for chlorine or other strong oxidizing materials. For safe handling information on this product, consult the Material Safety Data Sheet.(MSDS). STORAGE Products shall be ideally stored in a cool, dry location in un opened containers at a temperature between 8 to 28 ℃(46 to 82 ℉)unless otherwise labeled, Optimal storage is at the lower half of this temperature range, To prevent contamination of unused product, do not retrun any material to its original container. NOTE The data contained herein are furnished for information only and are believed to be reliable. We cannot assume responsi bility for the results obtained by others over whose methods we have no control. Permatex, Inc. specifically disclaims all warranties expressed or implied, including warranties of mer chantability or fitness for a particular purpose,arising from sale or use of Permatex,,Inc. products and disclaims any liability for consequential or incidental damages of any kind, including lost profits. This product may be covered by one or more United States or foreign patents or patent applications. |
●避免與皮膚及眼睛直接接觸，請于使用時戴上塑膠手套及安全護目鏡。
●若因接觸皮膚引起過敏及紅斑，請以肥皂及清水沖洗；若不慎觸碰到眼睛時，請立即以清水沖洗并就醫診查
●勿吞食、勿讓孩童取用。
●使用本材料的工作環境須通風良好，勿在密閉空間使用。
