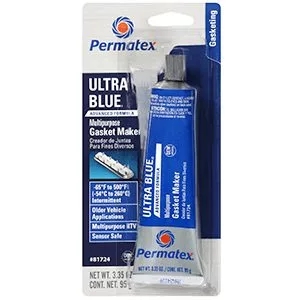

超藍RTV硅制墊片膠81724 、85519、 81725
Permatex Ultra Blue RTV Silicone Gasket Maker
泰揚超藍RTV硅制墊片膠
Phone: 18930426792? Mobile: 021-67769720
Permatex Ultra Blue RTV Silicone Gasket Maker
泰揚超藍RTV硅制墊片膠
氣味淡，無腐蝕性物質，保證了傳感器的安全性，其填補縫隙最大尺寸可達6mm。該產品粘合力強并且充分發揮其防止油及冷卻液滲漏的特點和抗振的特性，其彈性是軟木墊片或復合材料墊片的8倍，其防油能力是普通硅膠的3倍。間隙工作的適用溫度在-54℃至260℃之間。
包裝規格
型號 | 包裝規格 | 每箱數量 | 產品代號 |
81724 | 3.35盎司卡式管裝 | 12 | 77BR |
85519 | 9.5盎司PowerBead罐裝 | 6 | 85519 |
81725 | 13盎司卡桶 | 12 | 77C |
PRODUCT DESCTIPTION Permatex Ultra Blue RTV Silicone Gasket is a single component, room temperature vulcanizing gasket ing compound designed to provide reliable "forme d-in-place" gaskets for mechanical assemblies. This material cures on exposure to moisture in the air to form a tough, flexible,silicone rubber gasket. The pr oduct resists aging, weathering and thermal cycling without hardening, shrinking or cracking. Designed for superior bonding properties to oil contamintaed metals as compared to other formed-in-place gasket s, and maintains outstanding oil resistance, NSF Whit e Book registered. PRODUCT BENEFITS ● Sensor safe, non-corrosive ● Superior adhesion and flexibility ● Improved oil resistance ● Replaces most cut gaskets ● Low odor ● Can be used as a gasket maker or dressing ● Non-flammable, Non-toxic TYPICAL APPLICATIONS ● Pump housings ● Machine tools ● Compressors ● Gearboxes ● Transmission pans ● Valve covers ● Oil pans DIRECTIONS FOR USE For assembly as form-in-place gasket 1.Remove all previous material from mating surfaces. Permatex Gasket Remover is recommended for mo st materials. 2.For best results, clean and dry all surfaces wiht a res idue-free solvent,such as Permatex Brake and Parts Cleaner. 3.Cut nozzle to desired bead size, 1/16 to 1/4 in dia meter, A 1/8 bead is usually sufficient for most applications. 4.Remove cap,puncture tube or cartridge seal and attach extension nozzle. 5.Apply a continuous 1/16 inch to 1/8 inch bead of silicone to one surface, first tracing the internal areas of the gasket configuration, then all surroun ding bolt holes. | 6.Assemble parts immediately while silicone is still wet. 7.Finger tighten flange only until material begins to seep out the sides of the flange. 8.Allow to set for at least two hours and re-torque at lease one quarter to one half turn. 9.For best results, allow to cure overnight. For assembly as gasket dressing 1.Repeat steps 1 thru 4 as in previous section. 2.Apply a thin film of silicone to one surface to be sealed. 3.Place the pre-cut gasket onto silicone film. 4.Apply a second thin film to pre-cut gasket surface. 5.Remove any excess and assemble parts immediately. Note:Product not recommended for use as a cylinder head gasket or head gasket sealant. Instructions for PowerBead 1.Clean and dry all flange surfaces to be sealed. 2.Remove black cap from top of extension nozzle 3.Turn nozzle extension one complete turn (360) counterclockwise 4.Depress finger trigger and apply a continuous 1/16 inch to 1/8 inch PowerBead to one surface. 5.Assemble parts immediately while silicone is still wet 6.Finger tighten flange only until material begins to seep out the sides of the flange. 7.Allow to set for at least two hours and re-torque at least one close, turn extension nozzle clockwise until tight (about one full turn). Wipe off excess material from nozzle and replace black cap. For Cleanup 1.Remove uncured product from parts and hand-tools with Permatex Fast Orange Wipes or Fast Orange Hand Cleaners. If skinned over, break film with a dry cloth to remove as much as possible.Remove the remaining material with Permatex Gasket Remover. 2.Clean hands with a dry cloth or Permatex Fast Orange hand cleaner. Storage of Unused Product 1.Create a "Silicone Plug" by allowing excess material to extend beyond the extension nozzle or aerosol tip to cure, sealing and protecting the remaining product from moisture, For reuse, simply remove the cured product from the tip. 2.For PowerBead dispensers, you may store remaining product using either the above "silicone plug" method or using the included plastic cap. |
PROPERTIES OF UNCURED MATERIAL Typical Value Chemical Type Oxime silicone rubber Appearance Blue non-sag paste Odor Low odor Specific Gravity 1.3 Viscosity Thixotropic paste Extrusion rate @25 ℃,(grams/min) 880 Flash Point ℃ （℉） >93(>200) TYPICAL CURING PERFORMANCE Permatex Ultra Blue No-Leak RTV Silicone Gasket cu res on exposure to moisture in the air. The product dries tack free in two hours and fully cures in 24 hou rs.Cure times will vary with temperature, humidity and gap. PERFORMANCE OF CURED MATERIAL After 7days at 25℃（77℉），50% Relative Humidity Typical Values Hardness(Shore A) 30 Elongation,% 360 Tensile Strength ,N/MM2(psi) 1.7 (240) Gap Fill, inch 0.25 Material will stretch 3.6 times its original length before breaking Amount of force required to break material. TYPICAL ENVIRONMENTAL RESISTANCE Temperature Resistance Typical Values Continuous,℃(℉) -54 to 204 (-65 to 400) Intermittent,℃(℉) -54 to 260 (-65 to 500) Chemical /Solvent Resistance The product retains effective properties in contact with automotive fluids, such as motor oil, transmission fluids, alcohol and antifreeze solutions .Note: Not recommen ded for parts in contact with gasoline. GENERAL INFORMATION This product is not recommended for use in pure oxygen and/or oxygen rich systems and should not be selected as a sealant for chlorine or other strong oxidizing materials. | For safe handling information on this product, consult the Material Safety Data Sheet,(MSDS). STORAGE Products shall be ideally stored in a cool, dry location in unopened containers at a temperature between 8 to 28℃ （46 to 82℉）unless otherwise labeled. Optimal storage is at the lower half of this temperature range. To prevent contamination of unused product, do not return any ma terial to its original container. NOTE The data contained herein are furnished for information only and are believed to be reliable. We can not assume respo nsibility for the results obtained by others over whose methods we have no control. Permatex, Inc. specifically disclaims all warranties expressed or implied, including warranties of merchantability or fitness for a particular purpose, arising from sale or use of Permatex. Inc. pro ducts and disclaims any liability for consequential or incidental damages of any kind, including lost profits. This product may be covered by one or more United States or foreign patents or patent applications. |
●避免與皮膚及眼睛直接接觸，請于使用時戴上塑膠手套及安全護目鏡。
●若因接觸皮膚引起過敏及紅斑，請以肥皂及清水沖洗；若不慎觸碰到眼睛時，請立即以清水沖洗并就醫診查
●勿吞食、勿讓孩童取用。
●使用本材料的工作環境須通風良好，勿在密閉空間使用。
